blueglobe® with multiple- inlet – our most flexible cable gland
With blueglobe®, PFLITSCH has a cable gland in its rangeof products that impresses the most exacting customerwith its safety, functionality and optimum value formoney. Now PFLITSCH has extended the blueglobe®serieswith a cable gland for sealing ranges of 20 mm to 6 mm.
The blueglobe®with multiple-inlet has a sealing insert with three inlets that can be quickly and easily removed one by one using a screwdriver to suit the particular application. This special sealing insert allows PFLITSCH to extend the already large sealing range of the blueglobe®by a further 55 %.

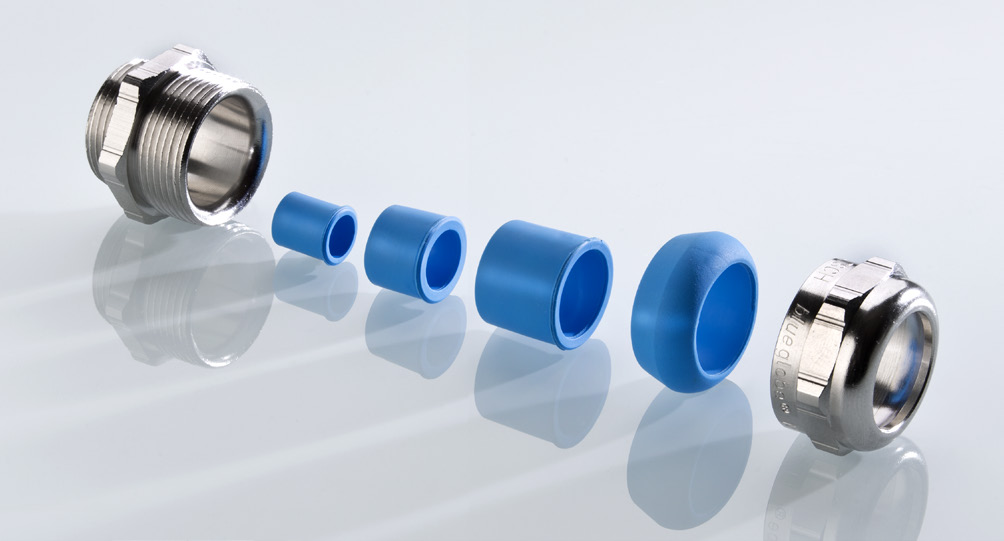

The three inlets on the blueglobe®provide a quick and easy way to adjust the sealing range.

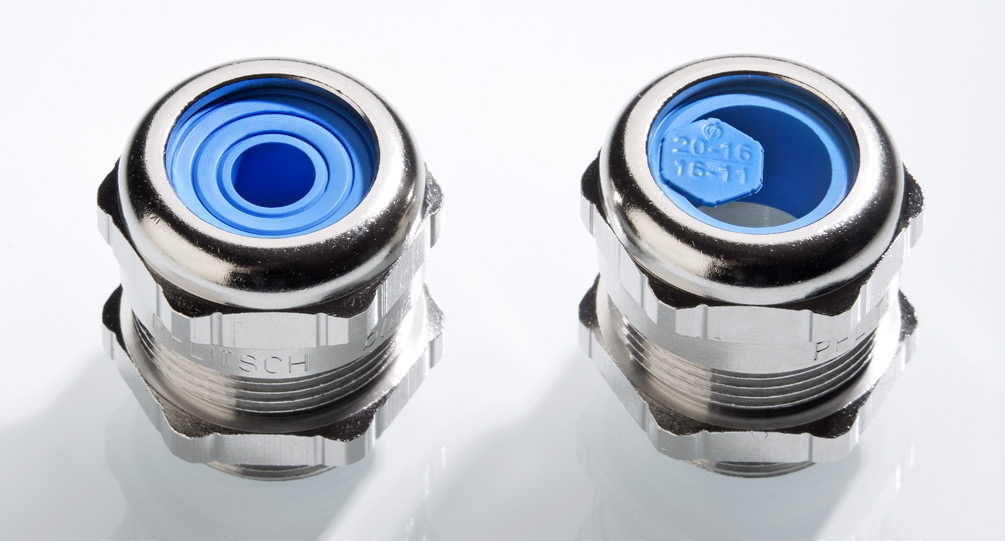

blueglobe®with multiple inlet and standard
blueglobe®side by side
Technical details:
· Article number:
bgc 9225ms 20.16.11.08
· Very large sealing range for cable diameters of 20 mm to 6 mm (Sealing range standard blueglobe®: 20 mm to 11 mm)
· Available size: M25
· Sealing insert with three inlets
in TPE
· Cable gland body available
in brass or stainless steel AISI 303/AISI 316Ti
· Temperature range: -40 °C to +130 °C
· Achieves type of protection IP 68 up to 15 bar
· Very high strain relief up to Class B, EN
62444
Advantages of the blueglobe® with multiple-inlet:
· 55 % larger sealing
range than a standard blueglobe® cable gland
· The unique sealing
insert with three inlets allows the sealing
range to be quickly and easily adjusted
for each particular application without the need for a special tool
· Savings on warehousing, ordering and article
maintenance costs, because just one size of cable gland can accommodate a wide range of cable diameters
· Simple to install, because
only one tool
size is required.
