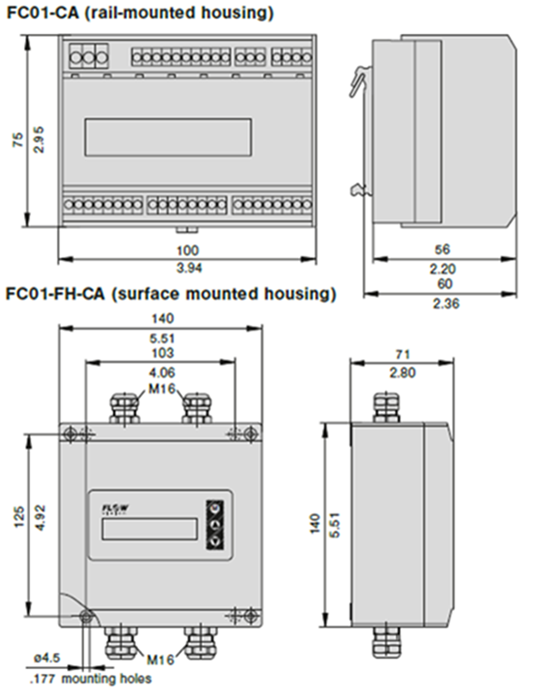

流量计FC01-CA
Flow Meter FC01-CA (compressed air/gases)
Description（描述）：
Microcontroller operated Flow Meter for gases such as air, compressed air,oxygen, nitrogen, argon,carbon dioxide, methane/natural gas and hydrogen. The FC01-CA is particularly suited to consumption measurement and leakage detection in compressed air systems. It is suitable for use with calorimetric monitoring heads.
Please note for use with carbon dioxide and argon that measurement is only possible with adapters TP-01 through TP-04.
Features（特征）：
• Menu driven (keypads)
• LC display (2 x 16 digits) can show
- actual operating flow velocity/standard flow velocity, operating volume flow/standard volume flow, mass flow,medium temperature;
- bargraph status indication of limit contacts, actual flow rate/ quantity or medium temperature;
- directions for parameter assignment, configuration, diagnostics and error correction;
- base value indication
• Two scalable analogue outputs
• Minimum/maximum memory of flow velocity and temperature Two freely selectable limit contacts
• Volume- or mass flow dependent pulse output
FC01-CA | Sensor adapter TP/Ball valve BV
Description（描述）：
Sensor adapters TP and BV facilitate correct positioning and exchange of CSP monitoring heads, FC03 or FS10 in pipes with process connection DN 15...DN 50.
Ball valve BV enables pressure-free installation and removal of CSP monitoring heads, Flow Meter FC03 and Flow Monitor FS10 simply by closing the input and output pipe. The measuring points are suited to temporary measurements; after completion of the measuring cycle they can be closed by means of blanking plugs.
Features（描述）：
• Correct positioning of the sensor
• Ease of sensor replacement
• Measuring point can be closed if not used
• Sensor adapter available as screw-in or welding type
• Ball valve also serves as a shutoff valve (both input and output)
• Carbon dioxide (CO ) and argon (Ar): only approved for TP-01 ... 04
FC01-CA | Monitoring head CSP-11
Description（描述）:
Calorimetric plug-in type monitoring head for sensor adapter TP/BV and flow meter FC01-CA, suitable for compressed-air applications and for measurement of gases.
Features（描述）:
• Ease of installation
• Small physical size
• Medium temperature range: -40 °C ... +130 °C/-40 °F … +266 °F
• Material: stainless steel 1.4571/AISI 316 Ti
• Sealing: Viton O ring
FC01-CA | Cable types and accessories (CST-11)
Cable between Flow Meter FC01-xxx and calorimetric monitoring head type CST.
• Connection to monitoring head by means of 8-pole round connector
• Connection to FC01-xxx by means of 10-pole clamping connector (XSK)
Please note for use with carbon dioxide and argon that measurement is only possible with adapters TP-01 through TP-04.
Features（特征）：
• Menu driven (keypads)
• LC display (2 x 16 digits) can show
- actual operating flow velocity/standard flow velocity, operating volume flow/standard volume flow, mass flow,medium temperature;
- bargraph status indication of limit contacts, actual flow rate/ quantity or medium temperature;
- directions for parameter assignment, configuration, diagnostics and error correction;
- base value indication
• Two scalable analogue outputs
• Minimum/maximum memory of flow velocity and temperature Two freely selectable limit contacts
• Volume- or mass flow dependent pulse output
FC01-CA | Sensor adapter TP/Ball valve BV
Description（描述）：
Sensor adapters TP and BV facilitate correct positioning and exchange of CSP monitoring heads, FC03 or FS10 in pipes with process connection DN 15...DN 50.
Ball valve BV enables pressure-free installation and removal of CSP monitoring heads, Flow Meter FC03 and Flow Monitor FS10 simply by closing the input and output pipe. The measuring points are suited to temporary measurements; after completion of the measuring cycle they can be closed by means of blanking plugs.
Features（描述）：
• Correct positioning of the sensor
• Ease of sensor replacement
• Measuring point can be closed if not used
• Sensor adapter available as screw-in or welding type
• Ball valve also serves as a shutoff valve (both input and output)
• Carbon dioxide (CO ) and argon (Ar): only approved for TP-01 ... 04
FC01-CA | Monitoring head CSP-11
Description（描述）:
Calorimetric plug-in type monitoring head for sensor adapter TP/BV and flow meter FC01-CA, suitable for compressed-air applications and for measurement of gases.
Features（描述）:
• Ease of installation
• Small physical size
• Medium temperature range: -40 °C ... +130 °C/-40 °F … +266 °F
• Material: stainless steel 1.4571/AISI 316 Ti
• Sealing: Viton O ring
FC01-CA | Cable types and accessories (CST-11)
Cable between Flow Meter FC01-xxx and calorimetric monitoring head type CST.
• Connection to monitoring head by means of 8-pole round connector
• Connection to FC01-xxx by means of 10-pole clamping connector (XSK)
